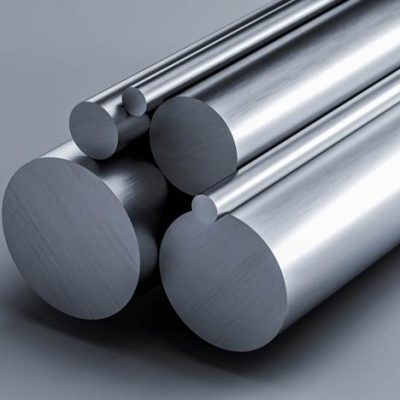

Titanium Bar/Rod
Titanium rods and titanium alloy rods have the characteristics of high melting point, small specific gravity, high specific strength, good toughness, fatigue resistance, acid and alkali corrosion resistance, low thermal conductivity, high and low temperature tolerance, and small stress under rapid cooling and rapid heating conditions.
Titanium alloy rods are widely used in high-tech fields such as aviation and aerospace, and continue to be used in industries such as chemical industry, petroleum, electric power, seawater desalination, construction, and daily necessities.
Titanium bar process includes hot forging titanium alloy, hot rolled titanium.
Yinggui is known as one of the largest titanium bars manufacturers in China, we stock titanium bars in various grades and sizes, and available shapes are round, square, flat and rectangular.
We supply full size Titanium sheet/tube/bar in multiple sizes. With a wide choice of thicknesses, lengths and widths.
Email: [email protected]
WhatsApp: 0086-18301953841
Titanium Bar Production Capability
Ti Production Standards: ASTM B348, ASME SB348, ASTM F67, ASTM F136, ISO5832-2, ISO5832-3, AMS 4928, AMS 2631b
Ti Grades: Gr 1, 2, 3, 4, 5 (6Al-4V), 6, 7 (Ti-0.15Pd), 9 (3Al-2.5V), Grade 12, 23 (6AL-4V ELI)
Ti Bar Dimensions: Diameter 8 – 400 mm
Ti Bar Shapes: Ti Square Bar, Ti Round Bar, Ti Hexagonal Bar
Ti Bar Surface Finishes: Black, Pickling, Sand-blasting
We can provide customized services according to customer needs, welcome to consult!
We supply titanium rods for various industries, including aerospace, chemical processing, and healthcare. Our high-volume production ensures a large inventory and quick order fulfillment.
Features of Titanium Grades:
Titanium Grade 1
This is a non-alloyed, low strength titanium product containing low oxygen with high formability. This grade is used in airframes, heat exchangers and desalination units.
Titanium Grade 2
This is a non-alloyed, medium strength titanium product. This grade is used in airframes, aircraft engines, and marine equipment. This grade features good weldability and corrosion resistance.
Titanium Grade 3
This is a non-alloyed, high strength titanium product providing excellent corrosion resistance and good weldability. This grade is primarily used in airframes and aircraft engine parts.
Titanium Grade 4
This is the highest strength pure non-alloyed titanium product. This grade is used exclusively for aircraft components, marine equipment, surgical implants, and hydraulic tubing. It contains good formability and it is corrosion resistant.
Titanium Grade 5 (6Al – 4V)
This is an alloyed products containing 6% aluminum and 4% vanadium.
Titanium Grade 7
This is a non-alloyed medium strength product containing palladium in the range of 0.12% to 0.25%. It has superior corrosion resistance. This grade is mainly used for industrial applications.
Titanium Grade 9 (3Al – 2.5V)
This is an alloyed titanium product containing 3% aluminum and 2.5% vanadium.
6AL - 2Sn - 4Zr - 2Mo (6-2-4-2)
This is an alloyed product containing 6% aluminum, 2% tin, 4% zirconium, and 2% molybdenum.
6AL - 6V - 2Sn (6-6-2)
This is an alloyed product containing 6% aluminum, 6% vanadium, and 2% tin.
5AL - 2.5Sn (5-2.5)
This is an alloyed product containing 5% aluminum and 2.5% tin.
8AL-1V-1Mo (8-1-1)
This is an alloyed product containing 8% aluminum, 1% vanadium, and 1% molybdenum.
The table below outlines the tensile properties of each titanium grade. Independent inspection and testing are conducted to ensure quality and provide reassurance.
| Tensile Requirements - ASTM B348/B348M-19 | ||||||
| Grade | Tensile strength | Yield strength(0.2% Offset) min or range | Elongation in 4D, min, % |
Reduction of Area, min, % |
||
| ksi(min) | Mpa(min) | ksi | Mpa | |||
| 1 | 35 | 240 | 20 | 138 | 24 | 30 |
| 2 | 50 | 345 | 40 | 275 | 20 | 30 |
| 2HB, C | 58 | 400 | 40 | 275 | 20 | 30 |
| 3 | 65 | 450 | 55 | 380 | 18 | 30 |
| 4 | 80 | 550 | 70 | 483 | 15 | 25 |
| 5 | 130 | 895 | 120 | 828 | 10 | 25 |
| 6 | 120 | 828 | 115 | 795 | 10 | 25 |
| 7HB, C | 58 | 400 | 40 | 275 | 20 | 30 |
| 9 | 90 | 620 | 70 | 483 | 15 | 25 |
| 9D | 90 | 620 | 70 | 483 | 12 | 25 |
| 11 | 35 | 240 | 20 | 138 | 24 | 30 |
| 12 | 70 | 483 | 50 | 345 | 18 | 25 |
| 13 | 40 | 275 | 25 | 170 | 24 | 30 |
| 14 | 60 | 410 | 40 | 275 | 20 | 30 |
| 15 | 70 | 483 | 55 | 380 | 18 | 25 |
| 16 | 50 | 345 | 40 | 275 | 20 | 30 |
| 16HB, C | 58 | 400 | 40 | 275 | 20 | 30 |
| 17 | 35 | 240 | 20 | 138 | 24 | 30 |
| 18 | 90 | 620 | 70 | 483 | 15 | 25 |
| 18D | 90 | 620 | 70 | 483 | 12 | 20 |
| 19E | 115 | 793 | 110 | 759 | 15 | 25 |
| 19F | 135 | 930 | 130 - 159 | 897 - 1096 | 10 | 20 |
| 19G | 165 | 1138 | 160 - 185 | 1104 - 1276 | 5 | 20 |
| 20E | 115 | 793 | 110 | 759 | 15 | 25 |
| 20F | 135 | 930 | 130 - 159 | 897 - 1096 | 10 | 20 |
| 20G | 165 | 1138 | 160 - 185 | 1104 - 1276 | 5 | 20 |
| 21E | 115 | 793 | 110 | 759 | 15 | 35 |
| 21F | 140 | 966 | 130 - 159 | 897 - 1096 | 10 | 30 |
| 21G | 170 | 1172 | 160 - 185 | 1104 - 1276 | 8 | 20 |
| 23 | 120 | 828 | 110 | 759 | 10 | 15 |
| 23D | 120 | 828 | 110 | 759 | 7.5 H, 6.0 / | 25 |
Dimensional Tolerances for Titanium Bars
The table below presents the diameter tolerances for titanium bars of different lengths, following internationally recognized engineering standards. The production methods determine the diameter range for each approach. Prior to ordering, all titanium rod dimensions and tolerances are mutually agreed upon.
| Specified Size, in. (mm) | Size Variations, in. (mm) |
Out-of-Round / Out-of-Square in. (mm) |
| 1⁄4to 5⁄16 (6.35 to 7.94), incl | +/-0.005 (0.13) | 0.008 (0.20) |
| Over 5⁄16 to 7⁄16 (7.94 to 11.11), incl | +/-0.006 (0.15) | 0.009 (0.23) |
| Over 7⁄16 to 5⁄8 (11.11 to 15.88), incl | +/-0.007 (0.18) | 0.010 (0.25) |
| Over 5⁄8 to 7⁄8 (15.88 to 22.22), incl | +/-0.008 (0.20) | 0.012 (0.30) |
| Over 7⁄8 to 1 (22.22 to 25.40), incl | +/-0.009 (0.23) | 0.013 (0.33) |
